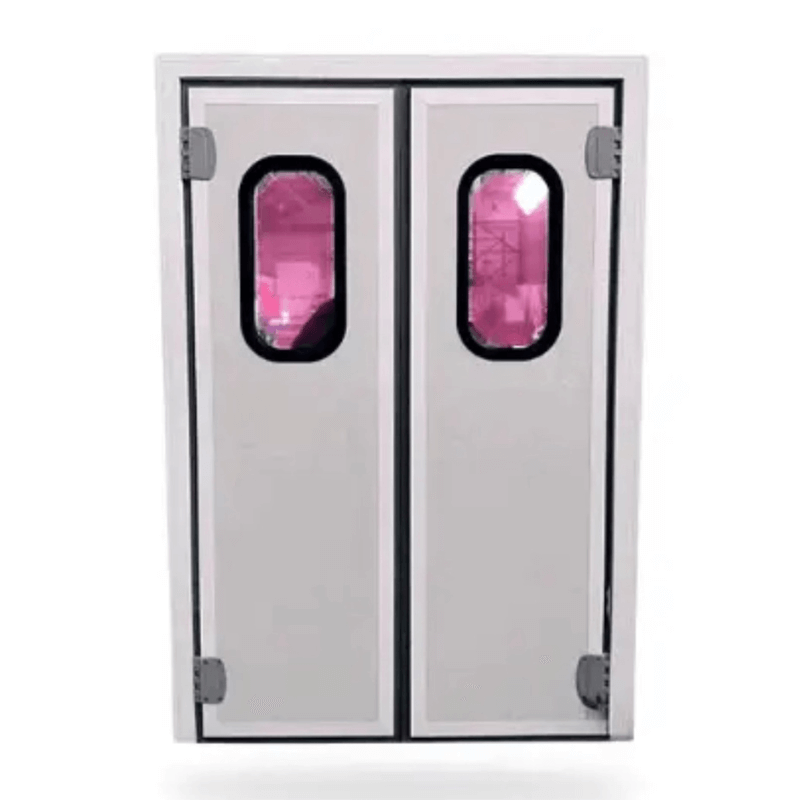

Traffic doors

At Control Air Refrigeration, our refrigerated by-swing doors are carefully designed to deliver reliable separation in high-traffic workrooms and refrigerated warehouses, maintaining both efficiency and consistent temperature control. Built for versatility, they are available in singleor double-sheet configurations, offering easy access and maximum flexibility across a wide range of applications. Engineered to integrate seamlessly with sandwich panel installations, these cold room by-swing doors provide outstanding insulation, energy efficiency, and long-term durability—making them a trusted choice for the food service, hospitality, and cold storage industries. With performance and practicality at the forefront, our customizable by-swing doors help preserve the integrity of temperature-sensitive products while improving workflow in busy environments. They also feature high calorific resistance, withstanding temperatures as low as -4ºF.

Key Features:
  •  High calorific value resistance (temperatures up to -4ºF)
  •  Available in various sizes and thicknesses. Left-handed and right-handed
  •  Available in single or double By-Swing Door
  • White lacquered finish
  •  CE marking
  •  Optional window
Ideal For:

Restaurants, grocery stores, warehouses, food processing plants, retail backrooms, and any facility needing durable separation between high-use areas.

Single By-Swing Door Double By-Swing Door
36″ x 78″ By-Swing Door 48″ x 84″ Double By-Swing Door
36″ x 84″ By-Swing Door 72″ x 84″ Double By-Swing Door
48″ x 84″ By-Swing Door 55″ x 94″ Double By-Swing Door
43″ x 87″ By-Swing Door 47″ x 74″ Double By-Swing Door
60″ x 84″ Double By-Swing Door
71″ x 87″ Double By-Swing Door
59″ x 87″ Double By-Swing Door
79″ x 98″ Double By-Swing Door
96″ x 96″ Double By-Swing Door
Category:
Description

Technical Characteristics of By-Swing Door

Category Details
Frame – Profile • Extruded aluminum frame & counter-frame, lacquered white • High corrosion resistance treatment • Double thermal break • Fixed with hidden screws, adaptable to different thicknesses
Sheet – Profile • Anodized extruded aluminum (stainless) • High corrosion resistance treatment
Insulation • Rigid polyisocyanurate (PIR) foam
Panel Thickness • 1.57 in (40 mm)
Veneer • Galvanized steel with white lacquered finish (1006) • Sheet thickness: 0.024 in (0.6 mm)
Strip • Very flexible & resistant with alveolus design for durability
Viewer • Methacrylate, 0.24 in (6 mm) thick • Dimensions: 11.81 × 15.75 in (300 × 400 mm)
Ironwork – Hinges • Double-action gray composite with stainless steel shaft • Retention at 90°
Hardware • Stainless steel
Options • Key lock • Lower zone leaf protection: Checkerboard aluminum, stainless steel, or 5 mm polyethylene • Aircraft wing protection: 5 mm aluminum or 3 mm stainless steel • Finishes: Lacquered sheet metal (various colors), stainless steel, PVC, Polyester, etc.
